Powder Management
System
|
Self-contained disposable powder cartridges allow quick
and measured refills. An inbuilt feed system ensures there
is zero maintenance in this critical area as the cartridges
can simply be removed and replaced.This system also allows
for a quick change between powder grades.
|

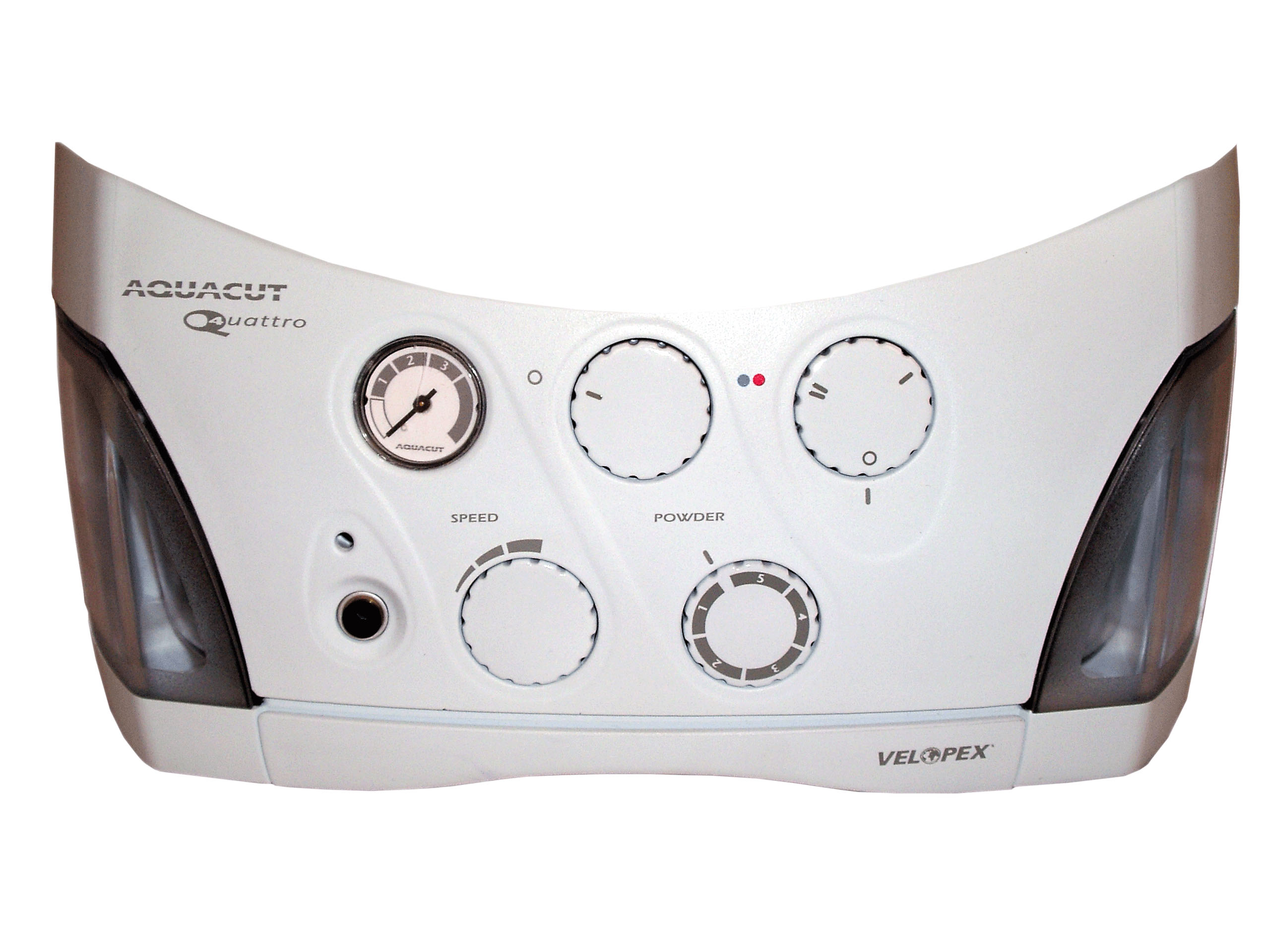

Control at your fingertips...
|
Air pressures and powder levels are quickly calibrated
through a simple-to-use control panel.The inclusion of a powder
selection switch (Twin Cartridge Aquacut) allows instant change
from cutting to polishing.
|
...and at your feet
|
A multi-function three-position foot pedal
allows the user quick and easy operation of all the Aquacut's
functions, from cutting and polishing to washing or drying.
|
Handpieces
|
With performance in mind, the ergonomic design allows
for comfortable operation in the hand and mouth without sacrificing
accuracy or control. The low resistance nozzle and long-life
tungsten tip ensures the handpiece is a high performance precision
instrument. The Autoclave-safe handpiece is made more versatile
with a quick release system and comes in three colours, each
offering a different size of cut.
|
Why Aquacut Three
in One?
|
The drill and needle are the most unpopular
tools in the patient's perception of the dental office, so
avoid them where possible. You can with Aquacut Three in One.
|
Aquacut Three in
One versus normal air abrasion:
|
Aquacut Three in One is a new generation of
cutting tool, taking the original concept of air abrasion
and with the addition of fluid, creating Aquabrasion, a far
more efficient and gentle technology.
Aquacut Three in One's unique fluid curtain suppresses the
powder emissions common with air abrasion units, while simultaneously
increasing cutting efficiency by constantly removing debris
created during the cutting process. The use of fluid reduces
the need for high air pressure levels, thereby increasing
patient comfort.
Aquacut Three in One is totally pneumatic, requiring only
compressed air to operate. Drawing a hygienic fluid from its
own self-contained replaceable reservoir, the Aquacut Three
in One is able to cut, polish, clean and dry.
|
Advantages of the
Aquacut Three in One:
|
Conservative, tooth-friendly dentistry. No
chipping or stress fractures, and minimal
removal of sound tooth material.
Quick and versatile - reduced treatment times.
Multiple quadrants treatable on a single visit.
A must for modern adhesive dental techniques.
The Aquacut Three in One is able to cut, polish, clean and
dry.
Aquacut Three in One is a unique product, incorporating advanced
patented technolgy.
NO DRILL, NO NEEDLE, NO VIBRATION OR BURNING
SMELLS.
INCREASED COMFORT - NO FEAR.
The Aquacut Three in One provides a more relaxed way to work
and is an excellent practice building tool.
|
|
|
|
|
SPECIFICATION
|
dimensions:
|
|
|
twin cartridge:
|
Depth
|
315mm / 12.5"
|
|
Height
|
190mm / 7.5"
|
|
Width
|
390mm / 15.5"
|
|
Weight
|
7.5kg / 16.5lbs
|
single cartridge:
|
Depth
|
315mm / 12.5"
|
|
Height
|
190mm / 7.5"
|
|
Width
|
280mm / 11"
|
|
Weight
|
5kg / 11lbs
|
External Supplies:
|
Clean, dry, compressed air, 6 bar (90psi)
minimum, 7.5 bar (110psi) maximum. Inlet air supply
connection 06mm push-in fitting.
|
Foot Control:
|
Three-way multi-functional foot valve for
cut, wash and dry control. 2m (6ft), three core pneumatic
supply tube.
|
Output Pressure:
|
Infinitely variable cutting/polishing air
pressure between 0-7 bar (100psi), controllable via
rotating thumb wheel and pressure gauge.
|
Cutting Media:
|
53 and 29 micron Aluminium Oxide. Powder
rate infinitely variable between 0 and 6g / min (0.2oz)
via rotating thumb wheel and pressure gauge.
|
Polishing Medium:
|
Sodium Bicarbonate.
|
Handpiece: |
Anodised Aluminium with separate integral
powder and fluid channels (both operated by foot control).
Nozzles made from stainless steel tube
with Tungsten Carbide tip. Colour coded handpieces for
simple tip-size identification.
Silver - 0.6mm (2 supplied with the Aquacut Three in
One).
Blue - 0.5mm (optional extra).
Gold - 0.8mm (optional extra).
Handpieces incorporate quick release system for convenient
changeover of cutting sizes.
|
|
|
